- Add to support Pixel4 and LG G7 in Menu->Edit->Depth map-> Open Jpeg include depth map.
- Add 'Equally Shift' Button in Menu->File->Multiple Images->X/Y adjustment && Cropping...
- Add 'Repeat in round trip (1->n->1)'option in Menu->File->Movie/Image sequence->Image sequence repeat copy...
- Depth Map generation from 2D image by Google AI
- Add to support Nokia in Menu->Edit->Depth map-> Open Jpeg include depth map.
- Add 'Horizontal and Vertical adjustment' option in Menu->File->Multiple images->Auto rotaion adjustment
- Add 'Horizontal' only mode in 'set Point' button in Menu->File->Multiple images->X/Y adjustment & Cropping
-Fix the problem that the trimming position shifts when Half width SBS / Half height A/B mode
-Fix the problem that 16bit PNG images such as iPhone screenshots are not displayed correctly
- SPM can read the calibration values from the Looking Glass via USB.
- Added Looking Glass position auto detect mode.
- Added 'Keep Aspect-ratio with border' option in each 'Create LKG image' dialogues.
More detailed description
- Add Menu->edit->Depth map->ChromDepth Conversion
- Add Menu->edit->Depth map->2D+Depth 3D Photo Preview
Please use front(black) depth map. When you use front(white) depth map, double click on preview screen.
- Support 360 SBS/interlace/anaglyph preview in Menu->edit->360/180 image->360/180 image Preview
- Add "Save as Facebook 3D Photo(2D+Depth)..." in menu->edit->Depth map
How to make Facebook 3D Photo from Stereo pair
- Added some functions for the Looking Glass
- Added Facebook 3D photo saving
Note: To upload your 3D photo, you’ll need either an iPhone 7 Plus, iPhone 8 Plus, iPhone X, iPhone XS, or iPhone XS Max. 3D Photos can only be uploaded on mobile from these devices (Required by Facebook)
- Added Selected Blur
- Bug-fix for Averaging histogram
- Added Averaging histogram
- Added Grayscale and Sepia color conversion
- Added color levels adjustment
- Added tone-curve color adjustment
New features presentation video
2018/08/18 : How to make 3D mirror effected rotation image by SPM
2018/08/10 : How to make 3D wiggle movie from stereo pair
2018/08/07 : StereoPhoto Maker Ver5.26m
2018/08/05 : StereoPhoto Maker Ver5.26k beta
2018/08/05 : StereoPhoto Maker Ver5.26j beta
2018/08/03 : 3D little planet from 2D360 image + depth map with SPM
2018/08/03 : How to make 3D wiggle movie with SPM
2018/08/02 : 3D little planet created by SPM
2018/07/28 : Create depth maps from stereo pairs
- Added front floating window feature
- Added reverse Depth map feature
(SPM recognize as Front side is black and back side is white)
- You can load the depth map image from the portrait picture of dual lens smartphone (Apple/Samsung/Motorola/Huawei).
- Improve the Gap filling algorithm of converting from 2D+Depth map to 3D image.
- Improve the 3D 360 editing.
Add 3D 360degree feature
Support powerpoint remote controls for paging.
This version adds 'Border setting...' for Saving Universal View.
- Save Universal View
- Join Image
- Corrected HTML5 Stereo viewer cookie problem (Ver0.3 -> 0.4)
- Making lens blur image from 2D + Depth map
- 2D->3D Conversion with Google Camera's Depth map
Bug-fix of HTML5 Stereo viewer(Ver0.2->0.3)
- You can rotate the logo image in 'Add logo' feature.
- You can use over 3G byte memory in 64 bit OS.
- Added 3D Mirror effect
- Making the Rotating illusion image
- Making HTML5 Stereo Viewer with thumbnail menu page
- Making a batch file for SNS-HDR Lite
'SPM Clone Tool Instructions' has kindly been provided by David Starkman
- We can now change the size of the save dialog.
- 'No compression ghosting' message bug-fix in the save dialog for BMP/TIF/PNG file saving.
- HTML5 Stereo Viewer updated.

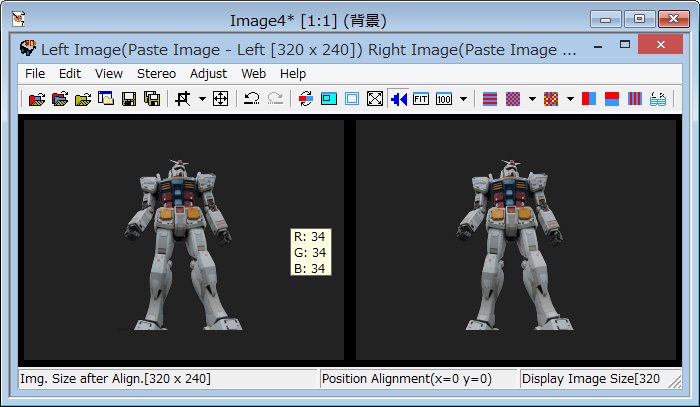

After editing such as resize,rotation,etc, improved the problems that color changes slightly with an error of internal calculations.

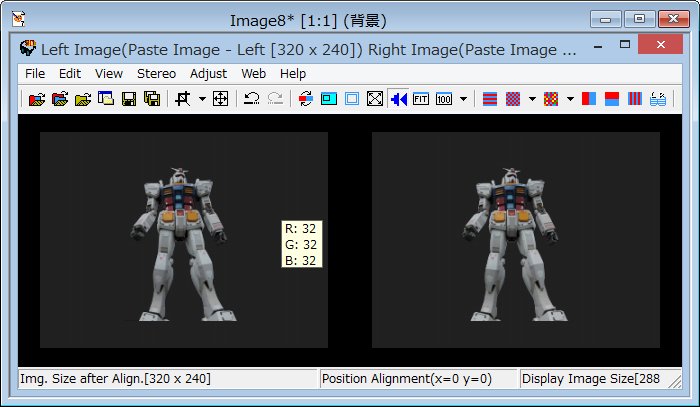

Resized image with SPM Ver4.51(Change to R:G:B=32:32:32)

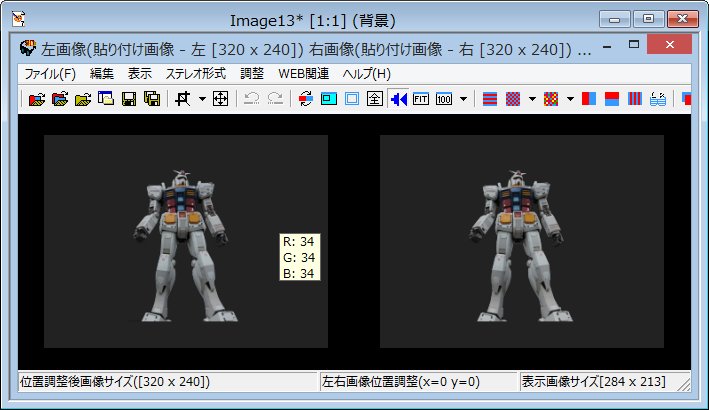

Resized image with SPM Ver4.52(Keep R:G:B=34:34:34)
- Fixed problem that after installing Gopro studio, You can not launch the SPM with this message 'No DLLS were Found in the Waterfall Procedure'.
- You can rotate the text in 'Add text' feature.
You can now overlay not only a logo copyright information image , but also superimpose multiple images that have an alpha transparency layer, images with a uniform single-colour background and chroma key images (prepared with other software).
You can change the size of the overlayed image.
In addition, you can also save / restore the overlay file.
The three-dimensional impression can be checked in real-time while viewing the anaglyph display.
- improve the algorism of Multiple Images / Auto rotation adjustment(One by one).
- Added 'Easy Create Popup Anaglyph' option in Multi Conversion. this option uses the latest setting of 'Easy Create Popup Anaglyph'.

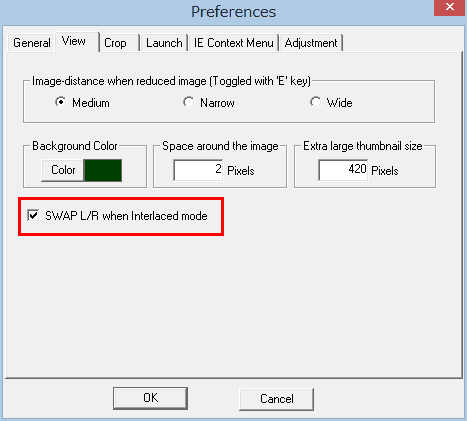

- Added 'SWAP L/R when Interlaced mode' option in Preferences.
Added Easy Create Pop-up Anaglyph.
Added View/Save/Multi-conversion of 'Half width SBS' and 'Half height A/B'.
Added 'Half width SBS(Ctrl+Alt+F9)' in Stereo menu.
The latest release of SPM fixes a number issues including visibility of the output-file folder on 1024x600 displays and folder refresh when importing files from dual cameras configured as USB removable drives. Space or backspace refreshes the views of the folder contents. Images will be recognised as stereo pairs by auto-alignment if they share at least twenty corresponding (homologous) features.
If not, they will be ignored by Multiconversion to avoid any possible problems.
Support is provided for saving images for viewing on iPod, iPhone and Android devices with the Hasboro my3D attachment.
The left/right images are separated by a wide black region necessitated by the viewer's off-centre septum.
You may view the entire image (with black borders above and below) or precrop to maximise viewing area.
Parallel side-by-side images may be converted individually (Ctrl+J)or batches of images processed with multiconversion.
MPO files may be transmitted to the PC and opened by SPM with Fuji W1/W3 cameras using Eye-Fi Pro X2 8GB cards.
Copy an MPO file to the folder Eye-fi is using and open it to inform SPM of the folder location.
You can then use Ctrl+Alt+E at any time to display the current contents of the folder.
When running two Instances of 'Open Image file list', the combined filepaths may now be up to 255 characters in length.
SPM Ver4.32 uses a new auto-adjustment method that may provide better accuracy for images that previously were difficult to adjust.
For user-convenience, the 'File Open' dialog box may be enlarged by simply dragging the bottom-right corner of the box.
There is now an option to add stereo logos to your images, using a variety of file formats and with transparency supported.
The multiple images in the Sony Cyber-shot DSC-TX9 Multi-angle MPO files may be extracted to a destination folder of your choice by selecting the 'Create/Split MPO file' option in the File menu.
Sample Sony images for stereo, panorama and multi-view are displayed on the website at here.
"Flash-based slide-shows" version up(Ver1.18) (Interlace mode bug fix)
Improve 'Auto Alignment Error' problem in SPM Ver4.30.
SPM Ver4.30 fixes a bug when pasting anaglyph images from another application into SPM.
It is now possible to automatically align a series of images that are intended for lenticular prints, autostereoscopic displays, 'bullet-time' movie sequences or large-scale object-rotation movies.
If there is a common point visible in all images, it is possible to provide a 360 degree rotating view of the subject and if there are a sufficient number of images, stereo 360 degree object-rotation outdoor movies may be created.
Sample source-image files may be downloaded.
Support is also provided for creating images suitable for lenticular prints.
In Multiconversion, saving to an output folder that is in thumbnail display mode no longer causes a '$' sign to be appended to the filename.
With the 'Add Logo Image' function, you no longer have to be in 100% mode in order to select a transparent colour. When enlarging the dialog, the display is now refreshed.
When creating the files for the StereoPhotoViewer Applet (SPVA), there is now an option that will allow the website visitor to save the original image file.
For auto color adjustment, you may choose left or right image to be reference.
As well as being rotated, you may now 'flip' images in a horizontal or vertical direction.
Eight different orientation tags may be embedded in the original image file.
This allows SPM to perform lossless rotations and flips when opening the files.
The reference number of the embedded, orientation type is displayed at top-left of the thumbnail (except fot extra-large thumbnails)when the image folder is viewed with SPM's Image File List.
Update "Flash-based slide-shows".(sample page)
Bug fix SPM's EXIF info.
The latest release of SPM supports the saving and loading of images in 'LRL' format.
This is to allow website visitors the option of parallel or crossed free-viewing.
It is referred to as 'Universal Freeview L-R-L' format.
You may add a thumbnail to the saved image and also review the created image in your browser.
As usual, you may set a target file-size and the amount of image-compression.
'LRL' may also be input and/or output options in MultiConversion for batch-processing of images.
NVidia '3D Vision' is now supported.
'3D Vision' requires 32 or 64-bit versions of Windows Vista or Windows 7 and Intel? Core· Duo or AMD Athlon·X2 CPU or higher.
It is supported by certain 1920x1080 and 1680x1050 120Hz LCD displays and 100Hz and higher analogue CRT displays, HDTV's and digital projectors.
NVidia state that certain Quadro boards support 3D Vision with Windows XP.
The iZ3D monitor is also supported, set Dual Full-screen mode (Alt+Enter or Ctrl+Alt+Enter) to use it.
The stereo-card options 'Add Text' and 'Add Logo' have been improved so that these features can occupy their own zone (covering the width of the image) and the zone can be appended to the outside of the image or overlaid on it.
The preview image in the window may be toggled between 100% image-size or fitted to the window. If you check the option 'Enlarge this Dialog for next time' the dialog will be displayed fullscreen next time it is used.
- Flash-based stereo viewer version-up (Ver1.02 - 1.03)
Improve the loading speed of thumbnail images,Variable sideshow interval, Add prev,next,close buttons.
- Show maxmized button for Add Text and Add Logo Image dialogue.
-[couldn't read the MPO file] problem.
-hanging up while splitting a batch of mpos into jpgs.

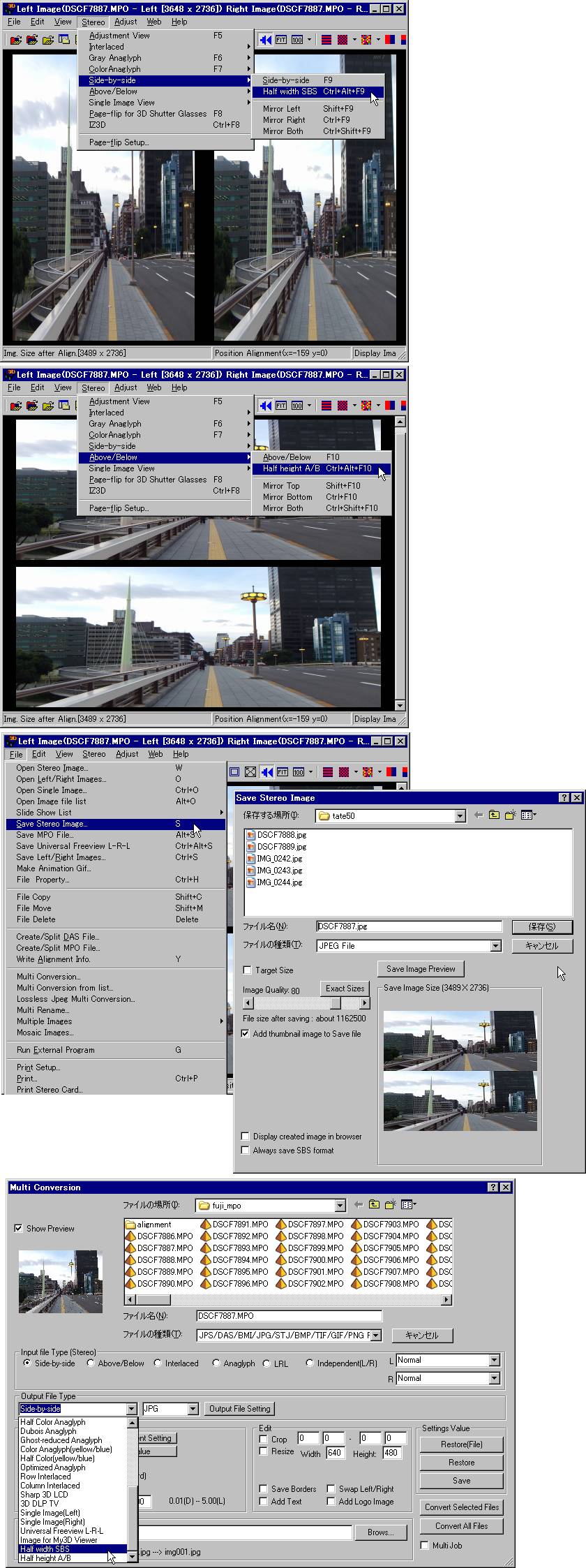

The latest release of SPM provides support for the MPO multiple-picture format, as used by the recently-intoduced Fuji FinePix Real3D W1 digital stereo camera.
You may directly open the images (in File\Open Stereo Image) by choosing side-by-side format.
'Make/Restore an MPO file' will losslessly-extract the individual JPG images from the MPO file.
Those images can be auto-adjusted and/or otherwise processed using Multiconversion.
You can also create an MPO file from existing JPG images.
An image size of 800 x 600 pixels will display on the Fuji W1 camera and V1 viewer and minimise storage on the SD card.
Some source images (as produced by PhotoShop for example) may not display correctly on the camera and viewer.
In that case, use Multiconversion with resampling instead.
You may use Multiconversion to batch-convert MPO images to a different stereo format that enables alternative viewing methods.
If you always use the same source and destination folders, you can save time by saving your Multiconversion settings in a named file ('ExtractMPO' for example).
You may also use Multiconversion to create MPO files from existing images, as mentioned previously.
Correct "Auto Adjustment Error" problem.
SPM 4.0 is a major release that uses a new (non-SIFT) fast method of feature detection.
If your images only have horizontal and vertical 'errors', you can simply press certain key combinations to auto-adjust the current image, previous image or next image.
To autoadjust the displayed image, press Ctrl+Alt+space-bar.
To load and autoadjust the next image, press Alt+space-bar.
To load and autoadjust the previous image, press Alt+backspace.
If an alv alignment-value file already exists in the folder, its values will be used rather than computing new values.
It may also be used (as an alternative to SIFT) in the Multiconversion of a folder of images.
In Edit\Preference\Adjust, clear the entry that specifies Autopano location.
SPM will insert 'Internal code'.
SPM 4.0 also allows you to easily create Flash-based slide-shows without requiring any programming knowledge.
The slideshows may be viewed on your computer or uploaded to a website (enable Java scripting to view).
You can now create stereo snapshots (at screen resolution) of locations shown on Google Earth and optionally switch to map, terrain, satellite or hybrid map/satellite views).
SPM no longer has a virus-check function, so make sure that you only download from the official website.
The cropping problem in Vista (caused by Windows task manager)has been fixed.
Project stereo image onto a sphere.
StereoPhotViewer Applet (SPVA) has been upgraded to version 0.32 thanks to additions generously provided by Pierre Meindre :
- Added applet parameter "helpfile" for specifying the help page that will be open when the use presses the 'H' key (if not specified, the default "helpwe.htm" is used).
- Added applet parameter "charset" for specifying the encoding charset for the filelist file (i.e. UTF-8).
- Max slideshow delay changed to 99s (instead of 9s).
- Specifying a negative value to the "slideshow" parameter will do the following:
- the interval will be set (using the absolute value) but the slideshow will not start automatically.
- Correction of the encoding of the Sharp 3D mode.
- Corrections for displaying in Sharp 3D, Interlaced V and Interlaced H modes to avoid pseudoscopic effects when zooming and/or panning the image.
- Added applet parameter "language" for specifying the language used for the applet user interface.
- This parameter must be a two-letter language code like 'en' or 'fr'.
- If not specified, the applet will use the "locale" of the current java virtual machine.
- The applet will try to load the property file "spva_
- If the file cannot be loaded, the applet will revert to English.
Visit Pierre's website http://www.stereoscopie.fr/Paris/?type=4 to see an example of the applet in use.
The latest version of SPM allows you to add, delete or change a geographical information tag (GEO tag)in a displayed image.
The images geographical location is easily and quickly found by searching for a nearby major city with GoogleMaps.
You may then use GoogleMaps navigation controls to move to the required location and zoom up or down.
When a GEO-tagged image is loaded into SPM, you may view its location on a map, satellite image, terrain image, combined satellite and map or with the GoogleEarth plugin for Internet Explorer(IE). IE does not have to be your primary browser, just installed on your system.
GoogleEarth has its own navigation controls that allow you to explore the geographical area.
For convenience, a GEO tag icon may be added to the toolbar.
Auto-adjustment has a new mode where only horizontal and vertical adjustments are made.
If your rig is reasonably accurate, you can use this mode and obtain higher quality images.
The latest version of SPM provides a floating-window option to aid deghosting of 'problem' anaglyphs.
You may set a default value (as a percentage of image-width) for the floating-window shift that determines its position relative to the screen surface.
You may also set the width of inner, middle and outer borders either in pixels or as a percentage of image width.
The color of each of the three borders may be individually selected.
This option can be used repeatedly (if desired) on a single stereo image to provide multiple floating windows.
The latest version of SPM supports the Dubois (red/cyan) anaglyph-conversion method.
'Problem' colors that cause ghosting are converted to non-ghosting colours.
The 3x3 matrix previously used by Optimised Anaglyphs is now 6x3.
This allows you to enter the starting values for the Dubois (or other) anaglyph method and then alter the values to give different non-ghosting colors.
Multiconversion now includes output-format options for Dubois anaglyph, simple vertical interlacing and chequer-board images suitable for 3D-ready DLP TV's.
Features added in the previous release (dual-core support in multiconversion, simple interlacing and 3D DLP TV) are now documented.
Added two Interlaced modes.
- Column Interlaced (not same as Sharp 3D LCD)
- 3D DLP TV
Added 'Multi Job' option in Multiconversion.
Bug-fix for creation of new folder in Vista.
Improved Image quality for low interlaced mode.
Corrected the free cropping bug.
Added the information about running SPM on Apple macs in the Help file.
Corrected the overlapping bug in the clone brush dialog.
The latest release of SPM shows the outline of the clone-brush shape and size to make its use easier.
You may specify the number of Undo/Redo buffers that best suits your available memory.
A zooming problem in page-flipped mode has been fixed.
The latest release of SPM allows you to batch-create side-by-side images (with any aspect-ratio) in a format suitable for digital projection.
The mouse-wheel zoom is now centered on the initial cursor position, allowing you to zoom-into a feature of interest.
In all stereo viewing modes (except page-flipping) you now have the option of showing a grid overlay with the number of rows and columns of your choice.
For webpage presentation of side-by-side images, you may now losslessly create JPG triplets in LRL or RLR format from existing JPG images.
When using an unsynchronised pair of cameras, or a single camera, any objects that move during the taking will be at an incorrect depth.
SPM now provides a stereo clone-brush to correct these errors.
You may choose brush-size, shape and hardness.
Undo and Redo may now be done up to 100 times (depending on memory).
A menu option to clear buffers speeds-up operations if Windows uses swap files.
Maximum image size for auto-correction is now 16383 pixels width and/or height.
On completion of Multiconversion, you can now choose to return to that operation rather than just exiting.
Brief notes in Help file about using SPM with Vista (based on posts here by Pierre Meindre and others) and a page on 'Basic Operations' that summarises commonly-used features.
Update help file.
The latest release of SPM no longer provides the internal SIFT-algorithm option.
The University of British Columbia have stated that use of that feature by US residents contravenes their patent conditions.
If 'autopano.exe' (Autopano version) is in the same folder as SPM, it will automatically be used if you have not set the 'Autopano folder name' in the Preferences dialog.
There is now an option (in 'Preferences\Adjust') to hide the SIFT auto-correction DOS window.
When printing multiple, custom stereo-cards on a single sheet of paper, they will all be the size of the first card rather than defaulting to fitting the page-width.
After creating a simulated view of a popup anaglyph, the system no longer crashes when returning to the normal display-mode.
Notes have been added to the 'Help' file regarding making popup-anaglyphs when a reference-frame is not available or practical.
The latest release of SPM allows zoomed-in scrolling with panoramic and horizontal/vertical-mirror modes.
In MultiConversion (including auto-align), there are additional options for output file-type and stereo format.
Stereo formats are :-
Side-by-side (Mirror left)
Side-by-side (Mirror right)
Side-by-side (Mirror both)
Above\below (Mirror Top)
Above\below (Mirror Bottom)
Above\below (Mirror Both)
Gray Anaglyph (red/green)
Gray Anaglyph (red/blue)
Gray Anaglyph (yellow/blue)
Color Anaglyph (yellow/blue)
Half-color Anaglyph (yellow/blue)
Single Image (Left)
Single Image (Right)
Sharp 3D LCD
File formats are BMP, JPG, JPS, TIFF, PNG and GIF.
Auto-alignment now allows you to specify the maximum allowable disparity of the 'infinity' points (as a decimal percentage of image-width).
This value may also be entered in your 'Preferences\Adjustment'.
Free-cropping options with an aspect-ratio to suit Classic, Holmes cards and 6x13 format (on 6x4 inch paper for the latter two)have been added.
For subjects that benefit from a more-pronounced portrait format, the 7"x4.25" 'Cabinet' card is now supported.
Stereo cards may now have an arched top and rounded corners.
The latest release of SPM3 supports dual-core processors.
Using a 3GHz dual-core Pentium D930 with a large number of images, two image-pairs (each 2272x1704) may be processed in 17.5 seconds.
i.e. 8.75 seconds per image-pair.
The SIFT algorithm is now integrated into SPM, so Autopano-SIFT (and the .NET framework) and Autopano are not required.
However, you may choose from all three and compare quality and speed for your type of images.
Minor changes have been made to auto color adjustment and you are advised, for best results, to make any horizontal/vertical adjustments before using that function.
Multiconversion supports all anaglyph types for file output and the Help file has been amended to emphasise this.
When Multiconversion source files are in separate left/right folders, SPM takes the images in the left folder in ascending alphabetical order and pairs them with images in the right folder, also arranged in ascending alphabetical order.
e.g. the third image in the left folder will be paired with the third image in the right folder, if they cannot be matched by same name or '_L' and '_R' suffix.
I found a possibility of an application error at the time of automatic adjustment and corrected it.
The latest release of SPM3 has three options for setting the window position.
If disparity is less than 1/25th image-width, near point is mounted to the window.
The far-points will have a 'comfortable' disparity.
If disparity is greater than 1/25th, near points will come through the window.
Regardless of disparity, near point is mounted to window.
Far points may have excessive disparity.
No adjustment of the stereo window.
If you use Multiconversion with auto cropping ON, the image width will be cropped.
If you use this option, you can get maximum image width. and then adjust the window manually.
You may now use 'Autopano' as the keypoint detector (rather than 'Autopano-sift').
It is faster and does not need the .NET framework installation.
You may wish to compare speed versus quality using both keypoint detectors.
Finally, the horizontal-alignment algorithm has been improved.
The latest release of SPM allows you to automatically align and correct stereo-pairs and mount them to the window.(Sample Images)
A single image may be corrected with key presses (or from a menu selection) or hundreds of images may be corrected by using the 'Autopano' option in 'MultiConversion' or 'MultiConversion from Slideshow List'.
You should have already installed Autopano-SIFT and, if necessary, the .NET framework.
Unlike existing software that finds corresponding left/right image-points from pixel-patterns (2D correlation), SPM uses the SIFT algorithm (as implemented by Autopano-Sift) to extract hundreds or thousands of image features.
These features are invariant to translation and rotation, and to some extent to vergence and brightness.
Using the knowledge of those points, SPM applies translation, simple rotation, scaling, perspective-rotation and color-equalisation to correct the images.
All of the MultiConversion settings may be saved as a named MCV file (e.g. 'Powershot_Twinned.mcv').
Input images may be JPS/JPG/DAS/BMI/STJ/BMP/TIF/GIF/PNG and if in left/right folders they may have different names/numbers as long as they are in alphabetical order.
Simply loading the MCV file into MultiConversion, selecting the input images and clicking 'OK' will load your stereo images or left/right pairs in parallel or cross-eyed format, rotate left/right by 0/90/180/270 degrees or horizontally or vertically flip, correct barrel-distortion and then auto-correct the errors, align the images and balance the colors.
SPM limits the disparity of the most distant points to 1/25th of image-width for comfortable viewing.
If absolute disparity exceeds this, the near points are allowed to 'come through the window'.
The image is saved in any of the usual stereo-formats and file-types together with the original EXIF information, text overlay (such as Copyright c information), logo (with transparency), tricolor border, swapped left-for-right and at a predefined width/height and target file-size.
If required, the report-files may be saved for future use with auto-alignment or EasyAdjustment.
As an alternative, you may apply the alignment values from a single existing image to an entire batch of images.
In EasyAdjustment, the current status of 'link rotations' is now saved.
The latest release of SPM allows you to create 360 degree stereo panoramas using a single, rotating digital camera.
You may also use a 'virtual camera' in scenes created with '3D' (not stereo) programmes such as Bryce, PovRay, etc.
Uniquely, the disparity may be altered at-will after the images are taken.
Image strips are extracted from rendered frames, digicam movies or stills taken with a hand-rotated camera or one mounted on a motorised platform.
(Commercial use of this method may be restricted by patents.)
Also, you may now enable a visitor to download, and view with SPM, a slideshow of website images by linking thumbnails to a slideshow list.
A number of new options make the slideshow list compatible with various server operating systems.
When twinning cameras for stereo, the separation may be greater than average eye-spacing and under those circumstances, it is necessary to use a shorter-than-normal focal-length so that excessive parallax is avoided.
Because most zoom lenses suffer from barrel-distortion at the wide-angle setting, the latest version of SPM allows you to correct the distortion of a single image or multiple images using batch-mode.
The latest version of SPM now works with encrypted and/or indexed folders.
Custom-cropping works in zoomed-mode, particularly useful for accurate cropping of large images such as panoramas.
SPM print options now allow you to include multiple images on a single sheet of paper.
The images may all be stereo-cards or a mixture of formats such as single image, side-by-side, anaglyph, etc.
Each image is simply dragged into position and the vertical spacing may be set as a numerical value.
Text and description in a defined font-size, color and type may be added to 'Print Setup' images.
The latest release of SPM allows you to easily create 'wobble' or 'wiggle' animated GIF's from your stereo pairs.
For examples of these animated GIF's see Stereo Animation Sample and http://www.well.com/~jimg/stereo/stereo_list.html.
These can give an impression of depth that may be useful for some purposes as they do not require viewing-aids or the ability to freeview.
A new flashing-display mode helps you align the source images without using Easy Adjustment.
The animation created may optionally be displayed on a blank HTML page and can be loaded into SPM as a stereo iamge.
Stereo or left/right images may now be saved as GIF's and BMP/PNG/TIFF/GIF images may be saved with a reduced number of colors for smaller file-size.
Before saving, you can preview the images at real size to determine if the reduced-colors produce an acceptable result for your particular application.
The mouse-wheel may be used to change the size of the preview-window and the [F] key toggles between 100% size and fit-to-window.
- Alignment bug-fix
When you used 'perspective rotation' and 'reduce image size(<100%)' in easy adjustment, you had a alignment error.
The latest release of SPM fixes a zoom problem when using the Sharp 3D monitor.
You can now choose the left or right monitor as SPM's primary in dual full-screen setups.
Lossless JPG Multiconversion operations are provided for image-pairs and include rotations of 90, 180 and 270 degrees, joining
left/right images, decomposing side-by-side images to left/right pairs and swapping left/right images.
The input images may be baseline or progressive and if they are of different sizes or the height/width are not multiples of 16, SPM applies suitable cropping.
When saving the images, the original EXIF data may be copied together with a correctly-orientated thumbnail image.
This may also be done when saving a single stereo image (such as an anaglyph).
This enables 'Windows Explorer' to properly display the image and it's thumbnail (normally it ignores the orientation tag).
You may now also define a custom window-size for NVidia and Winx3D pageflipping modes.
The latest release of SPM now allows you to specify auto-cropping after doing normal or perspective rotations in 'Easy Adjustment'. This also applies to MultiConvert and 'MultiConvert from Slideshow list'. You can now adjust anaglyphs even though you do not have the original left/right source images. They are opened as two images in a special format that aids their visibility in 'Easy Adjustment'. A section has been added to the Help file describing how to use multiple monitors with SPM, typically for digital projection. This includes information kindly supplied by Werner Bloos and Ron Labbe. With dual monitors, SPM now supports 'Dual Fullscreen' mode to display images at the maximum possible size. Web-based stereo galleries (or 'photo communities')usually have limits on both image-size and filesize and present left/right images in a consistent way with a background-color space between them. You may now specify the size and color of that space, the maximum image-size including that space and any borders and a target filesize. SPM will adjust the JPEG compression to meet that filesize. Multiconversion and 'Multiconversion from Slideshow list' now supports the 'No compression ghosting' option when saving gray or color anaglyphs. When opening a website stereo-image with SPM from InternetExplorer, you are now given the option to specify the stereo viewing method (not just the one you have set in Preferences). This also applies to 'drag-and-drop', Paste (after Copy) and the command-line option. An 'Abort' button is now provided if you wish to stop the download of the image from the webpage. Especially for those with a dialup internet-connection, you may now access an online version of the Help file directly from SPM.
Key assignments for image-rotation have changed. Please check the Help file.
You may show detailed file information for JPG images that have an EXIF header and basic information for other file-types.
SPM's own DAS file-format saves your images in an uncompressed form (even if originally compressed) together with a thumbnail and alignment information.
It is a useful working-format before creating your final image.
You may now create and restore multiple DAS files from left/right source images in a single or dual folders.
The latest version of SPM allows you to open two instances of 'Image File-List', choose source and destination folders, select your favorite images and move or copy them to the destination-folder using the clipboard (Cut/Copy/Paste).
You may also rename a single or multiple files, adding or deleting letter-sequences to/from the end of the name, replacing letter-sequences with another sequence or completely rename a batch of images.
The latter is especially useful with digital-camera images and you may specify a starting-name-string common to all images, the starting-value of a numeric-index and an ending-name-string common to all images.
You may retain the original numbering if you wish.
Horizontal and vertical adjustment of the images may now be done to single-pixel precision by holding-down the Shift-key when using the arrow keys.
The latest version of SPM allows you to quickly scan a folder of images (using your normal viewing method) and delete, copy or move images to an existing or new folder.
They are then ready for your normal batch-processing workflow.
All four SPM toolbars (initial, stereo-image, single-image and image file-list) may now be customised to your own requirement and the settings saved or reset to default values.
You may add or delete icons and re-arrange their order using the menu or mouse-drag.
Anaglyph deghosting (using Lab color-space) may be done with thumbnails displayed in dialog-box windows or in realtime with a full-window display.
Automatic color-correction is available in batch-mode (Multiconvert) and you may choose the left or right images to be the unmodified references.
For ease-of-use, all of SPM's preferences are now unified into a single, multi-tabbed menu-item.
Finally, those wishing to experiment with minimising the effects of window-violation can use the 'Fuzzy Border' option and define border width, gradient (fuzziness), color and corner radius.
The latest version of 'StereoPhoto Maker' automatically adjusts an image to the color/brightness of a correctly-exposed reference image.
The new HSL (hue, saturation, lightness) color-adjustment mode provides a more intuitive color-space than RGB and allows you to attempt manual deghosting of anaglyphs or color-correction of images.
When viewing two folders of images you may synchronously-scroll them using the U/D keys, toolbar buttons or mouse key.
The window vertical scrollbar allows an individual folder to be scrolled.
A new toolbar button allows you to swap the folders left-to-right.
Although filesize will be larger, the latest version of 'StereoPhoto Maker' allows you to save JPG anaglyphs without compression ghosts.
You may still, of course, use 'normal' JPG compression if you wish.
Alignment mode now allows you to automatically correct position, rotation and size errors and set the stereo-window.
The latest version of 'StereoPhoto Maker' allows you to select a pair of corresponding points in the left/right images that will automatically be positioned at the stereo-window, any vertical error being corrected.
When zooming, you may now choose between speed (no resampling) or image quality (resampling enabled). Resampling mode is also recommended for viewing side-by-side images.
The new 'canvas size' option allows you to create an image of a stereo-card with a defined size that may be displayed (in mono) or saved for later printing.
This means, for example, you can print a 6"x4" card even if that size of paper is not supported by your printer.
Finally, the applet that SPM can create (and which is available as a stand-alone application for multi-platform use)also supports resampling and variable spacing for side-by-side images (as in SPM).
You may now share your stereo images with those who cannot freeview and do not have anaglyph glasses.
All they need is the latest SPM and a readily-available, small hand-mirror.
Full details are provided in the documentation and this is an easy way to encourage interest in stereo-imaging among the 'general public'.
When looking at reduced-size side-by-side images, you may toggle the spacing from narrow to medium to wide and set the preferred spacing-mode in Preferences.
Typically, you use narrow for parallel-viewing, medium for cross-eyed and wide for the above-mentioned mirror-method.
Viewing Mirrored Images with Single Monitor
You can now specify the vertical-position of the image within the 'Classic'-card frame and apply the selected background-color to the full-page, not just the stereo-card.
The fullpage color may be applied to the printed or saved image and can eliminate or simplify subsequent trimming of the print (especially the standard sizes produced by photo labs).
Print Stereo Card...
The latest SPM allows you to add a rounded-rectangle or no-frame to the image, as well as the previous 'Victorian' rounded-top frame.
The Stereo-cards may be optionally outlined in black and the background color may be chosen from 48 system colors or 16 custom-defined colors.
The finished card may be saved in a lossy or lossless file-format of your choice so that external printing facilities (such as a Photo-Lab) may be used.
For convenience, a 'Delete most-recently-used files' feature has also been added.
The latest SPM allows you to print 'Classic' or 'Custom' stereo cards.
'Classic' cards are 7x3.5 inches in size and have the rounded-top so popular in Victorian times, title/description on left and right and may be optionally converted to sepia-toned monochrome. 'Custom' cards have the same rounded-top but are a user-defined size with title/description at top or bottom and may also be sepia-toned. A new 'Add Overlay Image' feature allows you to 'cut-out' your images to any shape defined in a transparent GIF or PNG image, rather than just the predefined rounded-top template.
It is also useful for images where the entire background is white, the stereo card option would not produce a visible effect with such images.
Be sure to use the normal 'Print' function for these and not the 'Print Stereo Card' .
With some patience and ingenuity, 'Add Overlay Image' allows you to perform multilayer, stereo-compositing with 'realtime' control of the background's position in stereo-space.
A hotkey and toolbar-icon has been added for 'Open Single Image' mode and the most-recently-set, Horizontal-scroll-speed for panoramas is now saved as default-speed.
The latest release of SPM allows you to open two, side-by-side instances of the 'Open Image file list' menu-option.
The Left/Right folder images may be displayed in single-columns as 'extra large thumbnails' to allow easy detection of unsuitable pairs or missing images.
The tree-view may be toggled on/off (for greater image area) and both windows may be scrolled in-tandem using the U(p) and D(own) keys.
This allows you to quickly view (cross-eyed or parallel) very large numbers of images, even those taken with twin-camera rigs in any orientation, containing embedded orientation tags.
Running two Instances of 'Open Image file list'
When SPM has been associated with InternetExplorer's Context Menu, you may now choose the folder to save the downloaded image in and also rename the image, if desired.
Associating with InternetExplorer
The latest release of SPM allows you to embed orientation tags in the Exif header of JPG images (from digital cameras or scanned images).
If the image does not have an Exif header, SPM can add it.
These tags mean that programs (such as SPM) can correctly display any image taken with a rotated camera.
This avoids the bad-practice of rotating an image with software and resaving as a JPG with the resultant loss in quality.
Users of twinned-cameras can now set the tag in an entire folder of images with a single click of the mouse.
Using twinned-cameras with SPM
Brief notes have been added to the Help file regarding the batch-correction of Loreo 'lens-in-a-cap (LIAC)' images.
- Change the internal calculation for perspective rotation.
Thanks to Etienne Monneret !
- Memory management bug-fix.
The latest release of SPM includes a toolkit for creating "Popup Anaglyphs" (often called 'phantograms')
This allows anyone to create very realistic illusions without the expense of PhotoShop, an involved-workflow or knowledge of 'direct linear transforms'.
When the anaglyph print is laid flat and viewed from a particular angle and distance, the subject appears to popup from the surface in a remarkably realistic manner.
They may also be displayed on an NTT DoCoMo 3D mobile-phone, a flatscreen monitor or a monitor laid on it's back.
If you want to show visitors to your (non-commercial) website what the "Popup Anaglyphs" will look like when viewed, SPM acts as a 'virtual camera' and creates the appropriate left/right views in any stereo format (such as anaglyph).
All the user's adjustment settings may be saved in the registry and in a named file to enable easy batch-processing of multiple images.
This allows popup anaglyph object-movies or terrain fly-bys, for example, to be made and viewed.
You may also create in batch mode, stereo images of the camera-view of the 'Popup Anaglyph'.
In other words, what an observer would actually see.
In addition, sample "Popup Anaglyph" object-movies are available for download together with source images that exhibit 'deliberate errors' that the user can practice with.
Although the highest quality popups require care and attention to detail, SPM's new features allow pleasing results to be obtained by beginners who may be using 'less than perfect' source images.
A gallery of downloadable images and movies is available here.
How to create Popup Anaglyph
Very special thanks to Steve Boddy for his expert advice and images.
'Easy Adjustment' and 'Easy Adjustment (Advanced)' replaced by a redesigned, single dialog-box.
A user-defined grid overlay has been added to 'Easy Adjustment'.
Changes to Resize.
Fix bug when viewing/paging STJ files.
Save Stereo or separate Left/Right images in PNG 'TrueColor' or TIFF compressed/uncompressed lossless formats (packbits,ZIP,LZW).
(not supported in Batch-convert mode).
Open Stereo or separate Left/Right images in indexed (1, 4 or 8-bit) or 'TrueColor' PNG or TIFF compressed/uncompressed lossless formats (packbits,ZIP,LZW).
You can swap-over left/right views when loading stereo or separate images.
This is useful, for example, if you normally wish to view cross-eyed images as anaglyphs or you use Easy Adjustment (which has anaglyph display)a lot with cross-eyed source images.
Command-line Preferences now includes option to swap-over left/right views when right-clicking web images, dragging-and-dropping files onto SPM icon, double-clicking the filename (if SPM has been associated with the file extension) or by including the filename in a command-line.
The latest version of SPM may be installed in a folder of your choice (rather than just 'C:\Program Files\SPM\').
A progress-bar will be displayed while the image downloads and the image will then be displayed by SPM with the viewing method specified in 'Edit/Command line Preferences'.
In addition, stereo webpage-images composed of separate left/right views may be opened in SPM by right-clicking on either one.
Associating with InternetExplorer
Test images for 'IE Context Menu';
Stereo Photo Samples 1
Stereo Photo Samples 2
- Associate SPM with InternetExplorer's 'Anchor' and 'Images' contexts.
- Support Docomo 3D mobile phones SH505i.
You may now associate SPM with InternetExplorer's 'Anchor' and 'Images' contexts.
This means that right-clicking on an HTML document's images (typically thumbnails) or links to images, will give you the option to 'Open with SPM'.
The image will then be displayed by SPM in your preferred format.
This works with left/right views stored as single images (side-by-side,above/below,anaglyph).
It does not work with left/right image-pairs.
You may now visit your favorite website stereo galleries and display the images with SPM in formats that the site might not otherwise support.
As an example, try http://www.more3d.com/english/gallery_e.htm and press 'X' to swap images if viewing in anaglyph mode.
You can also try member John Thurston's Juneau galleries at http://stereo.thurstons.org/JuneauBeach.htm.
You may view his JPS or anaglyph images, just set the appropriate image type in Edit/Command Line Preferences.
Pierre MEINDRE provides 'Too Much Stereo !' at http://pmeindre.free.fr/htmlpic/TooMuchStereo2.jpg. Sit well back in your chair !
The HTML document may be on a website or your local filing system (hard disk).
With the local filing system, you can use SPM's various paging options (space, backspace, mouse)to sequence through a collection of images.
SPM's ZIP file should be extracted to a folder 'C:\Program Files\SPM\' .
You may click button 'IE Menu' in 'Edit/Preferences/IE Context Menu' to create or remove the association.
If you use a firewall you will have to allow SPM to access the 'Net.
- Creation of WebPages that use 'StereoPhotoViewer Applet' to display slideshows in a popup window or embedded in the page.
- Support GIF and PNG image loading
- Optimised Anaglyph mode allows custom-setting of parameters.
- Image resizing with a resolution of 0.1% (useful for large images from cameras used in 'tandem').
- Horizontal mirroring or vertical flipping of one or both images to suit existing/future, commercial/custom-made taking or viewing equipment.
- Open SPM-associated files in fullscreen mode (e.g. JPS files page-flipped with shutter-glasses)
- Keyboard shortcut for Saving Left/Right files.
- Fixed suggested filename bugs in Save dialog
- Bug-fix for 'Cannot resize window' error in Win98/Me.
- Fast preview of folder images as thumbnails with option to copy, move or delete selected images to existing or new folder.
- Add/Delete or restore a thumbnail to existing JPEG images for fast folder preview (also useful for large folders of 2D images)
- Vertical interlacing for autostereoscopic displays
- 2D display of left or right view from a stereo image (useful when saving or printing)
- Added vertical panorama autoscroll
- Internal bug fix (file history bug,file extensions bug,etc)
- Image mosaicing to aid creation of stereo, 360 degree panoramas in 3D-modelling programs.
- For the first time, View continuously-rotating 360 degree stereo panoramas without requiring expensive, quad-buffered OpenGL graphic-cards. (360 degree panoramas samples)
- Open single-image (monoscopic or color anaglyph) files for adding text,logo,cropping,contouring effect, etc.
- Display existing color-anaglyphs in color (not converted to two monochromatic images).
- Edge-detection filter to aid image-correction or for pictorial effect.
- Tricolor image borders on screen, Saved, Batch-Saved and Printed images (all with their own, individual settings)
- Image-cropping to a user-defined aspect-ratio
- Save all text settings as a default and Restore on-demand (typically for © Copyright information).
- Save all Logo settings as a default and Restore on-demand.
- User-selectable screen background-color.
- Image-resize that retains aspect-ratio with or without any borders.
- In Easy Adjustment modes, drag mouse to alter horizontal and vertical disparity.
- Bug-fix for indexed-color image files.
Before version 2.10, if you used an indexed-color image file (256 colors, 16 colors, mono colors) SPM could not apply any effects or Save the images.
- Dual-axis perspective-rotation for keystone-distortion correction
- Yellow/Blue color and half-color Anaglyph mode
- Shadowed, colored stereo text (such as a © Copyright notice) at any depth on individual or batched images
- Logo Image (BMP, JPEG ,TIF) at any depth on individual or batched images
- Automatic running of a slideshow on startup
- Drag-and-drop an image-pair onto the SPM icon or window (not with WinME)
- Magnified-view option in both 'Easy Adjustment' modes for more precise correction.
- Option to link left/right-image rotations in ordinary (non-perspective) rotation mode.
- Insert any characters into slideshow comments, including commas.
- Goto Next/Previous image with a single mouse-click at left or right of image
- Startup with it's window maximised option
- Improvement of Aliasing
- The straight lines remain as straight lines in the perspective view (Keystone Correction).
- Accept drag and drop left and right files on a icon or window.
- Change 'Easy Adjustment(Advanced mode)' dialog size for 800x600 screen.
- Another bug fix (zooming at interlace mode,etc).
- Add correction of image 'keystone' errors.
- Change the background color (Gray -> Black).
- Add the correct file extension in the file saving.
- Improvement Batch Processing (Multi Rename/Multi Conversion/Slide Show List/etc...)
- Supprt OpenGL quad buffered Stereo
- Corrected help file link problem
- Some bugfix for nVidia Stereo Driver
- Auto-scrolling of stereo Panoramas
- Support for a two or three-button mouse
- Support nVidia Stereo Driver
- message corrections.
- Added the complete English help file
- spell corrections.
- Added Maximized button in easy adjustment dialog.
- Added Command line Preferences in menu - edit
- Added half color anaglyph with gamma correction.
- Support SIS & Tri-Delta format.
-Bug fix (problem of minimize the application window)
-TIFF(without LZW) support
-Slide Show Script support
-Add red-cyan,red-green,red-blue anaglyphs with gamma correction
-Some bug fix
